Full product description

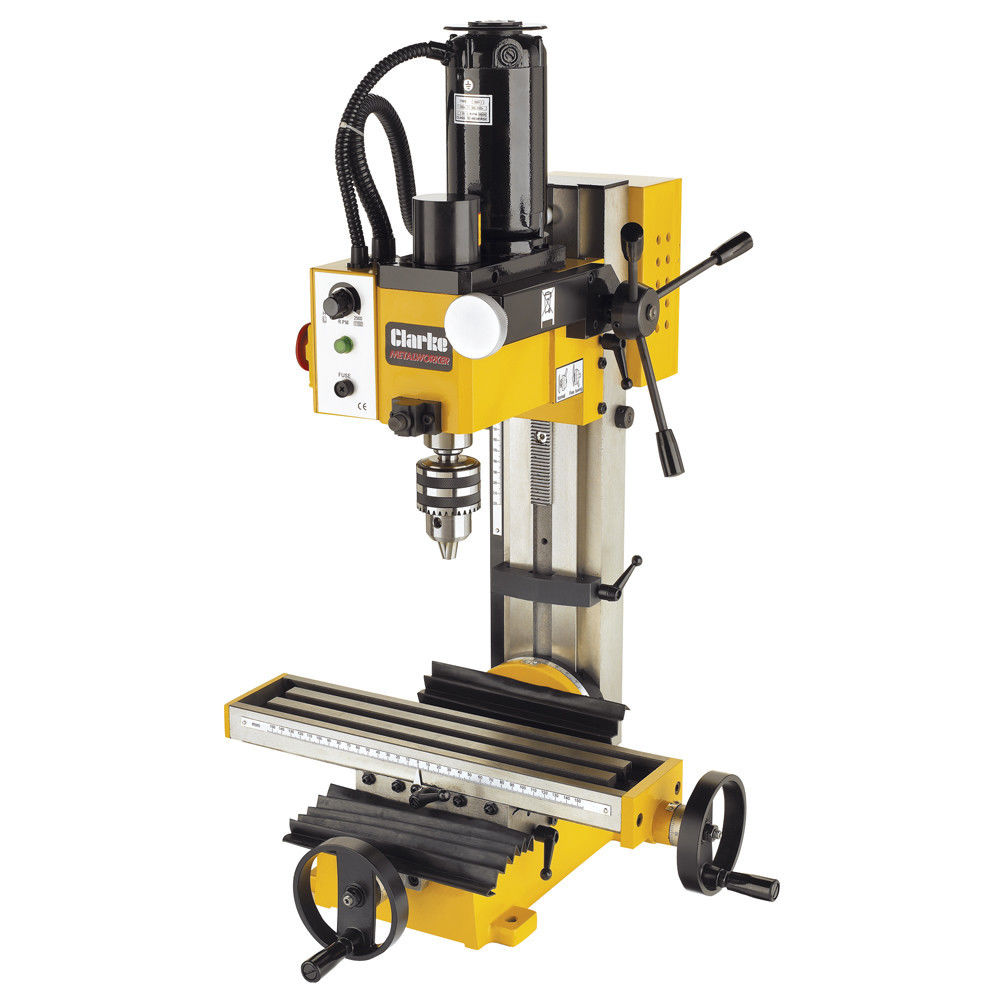

This highly precise drilling & milling machine is ideal perhaps for a smaller or more compact workshop, or simply where space is an issue. Bench mountable, the CMD300 has a head that tilts 45° left & right (from vertical), is robustly constructed from steel. It also comes with all the necessary tools & accessories to successfully use and maintain it. Such accessories include a drill chuck & taper shank plus lubricating oil, fixing pin, hex keys, a ‘C’ spanner, 3 wrenches, drill chuck key, drill handles, table adjusting wheels, ‘T’-Nuts and draw bar for the spindle lock. Please note for milling s separate “Mill Chuck Set” is required see (Clarke code 7610866).
Table cross / longitudinal travel – 100 / 235mm
Spindle speeds: 0 to 2500rpm
Spindle speeds: 0-2500
470W, 230V motor
Spindle taper: MT3
Table effective size (LxW): 92mm x 400mm
Dimensions (DxWxH): 514 x 506 x 756 mm
Mill chuck set not included (see item code 060720866)
Technical specification
Watts 470W Max Drilling Capacity 13mm Throat 170mm Speed (No Load) 0 – 2500rpm Spindle Taper MT3 Table Size 82 x 400mm Packaged Weight 53kg
